Basic Info

Model No.: YX300

Warranty: 2 Years

Certification: CE

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Semi-Automatic

C Purline Rollformer Voltage: 380-415 V

C Purline Rollformer Controling: PLC

C Purline Rollformer Color: Blue Or Can Be Painted As Your Required Color

C Purline Rollformer Shaft Material: Cr12

C Purline Rollformer Transmission: Double Chain With 1.2 Inch

C Purline Rollformer Shaft Diameter: 80mm

C Purline Rollformer Roller Station: 12 Stations

C Purline Rollformer Motor Power: 15 KW

C Purline Rollformer Weight: 6.5 Ton

C Purline Rollformer Size: 9.5m*1.8m*1.5m(L*W*H)

Additional Info

Packaging: plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Yx15x40-80x100-300mm C purlin rollfomer machine

Yx15x40-80x100-300mm C purlin rollfomer machineis a line which can produce different sizes of C purlines by controlling the PLC. The character of this Yx15x40-80x100-300mm C purlin rollfomer machine is with low labor force, and full automatic to change the size. The thickness of this C section floor beam is 1.5-3.0mm, size is from 80-300mm. For any sizes you need, we will know it and custom design the machine for you. We need to know the flange, the depth, the thickness,the lips.This Yx15x40-80x100-300mm C purlin rollfomer machine is ful aotumatic of

running and changing the size.

Below is the drawing for your reference:

Adjustable roll forming C Section Floor Beam rollformer line is a simple rollformer line including below parts:

The 3 tons manual decoiler, the feeding leveling system, Punching system, the main roll forming machine, the hydraulic Post cutting system, hydraulic station and receiving table.

Below is the working flow for your reference:

Below are some pictures for your reference:

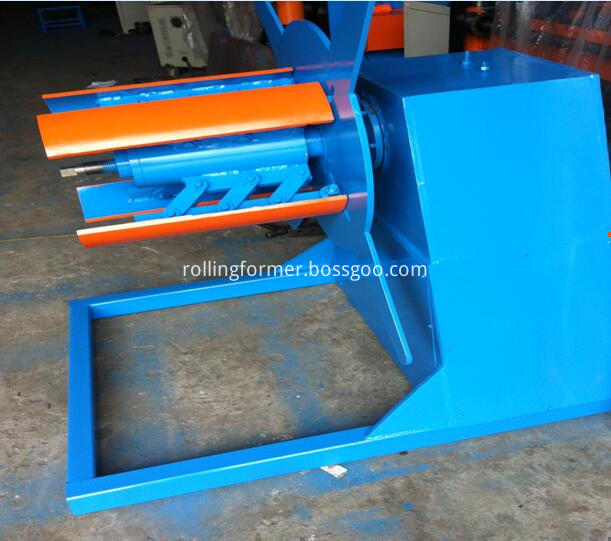

This is the 3 tons manual de-coiler for the automatic Yx15x40-80x100-300mm C purlin rollfomer machine

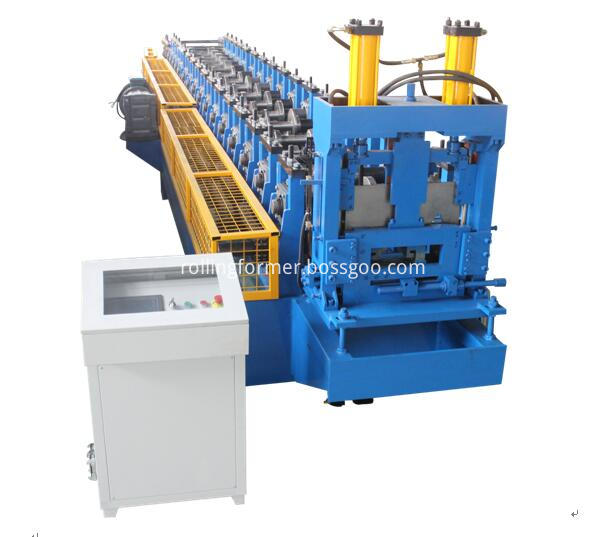

This is the adjustable cutting system, by this adjustable cutting system, you can cut any size you need, but no need to change the cutting blade. Just adjust the shaft left or right, up or down by controlling the PLC, the machine then adjust the cutting blades system. This Yx15x40-80x100-300mm C purlin rollfomer machine cutting system is popular in the C purline roll forming machine.Easy to control, but with low cost.

This is feeding system which can make the steel strips tidy and neat into the leveling rollers.There are two leveling rollers up and two leveling rollers down.

The material of the roller is Cr12 with finish machining after quenching by 56-65 degree tempeature.

The spacer on the shaft of the C purline roll forming machine is used to change the feeding width to form different size of the C purline floor beam.

The main motor system of the adjustable roll forming C Section Floor Beam rollformer.

This is the strong double chain of the adjustable roll forming Yx15x40-80x100-300mm C purlin rollfomer machine. This strong chain make the rollformer machine running stable and in good condition.

Yx15x40-80x100-300mm C purlin rollfomer machine is with the chain protection cover

Cutting blade material Cr12Mov, quenching HRC 58-62℃
rollers material,Cr12Mov, quenching HRC 58-62℃
C purline rollformer shaft material: #45 stel
Tolerance 3m±1.5mm
The pressure is 380V, 50HZ,3ph
Transmission is 1.0 inch double chain
Structural is Memorical arch
Machine color is designed as the customer required.
C rollformer machine size,  Length*width*height 11,5,meterx1,6meter*1..0m

This machine is with good price, i will send you a offer to your Email, also some machine running videos to your Email or through whatsapp.
