Basic Info

Model No.: ZT004

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Diameter: 80mm

Roller Station: 12 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: wuxi high durable roofing panel roll forming machine be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Stand Seam Roofing making Machine SSR machinery

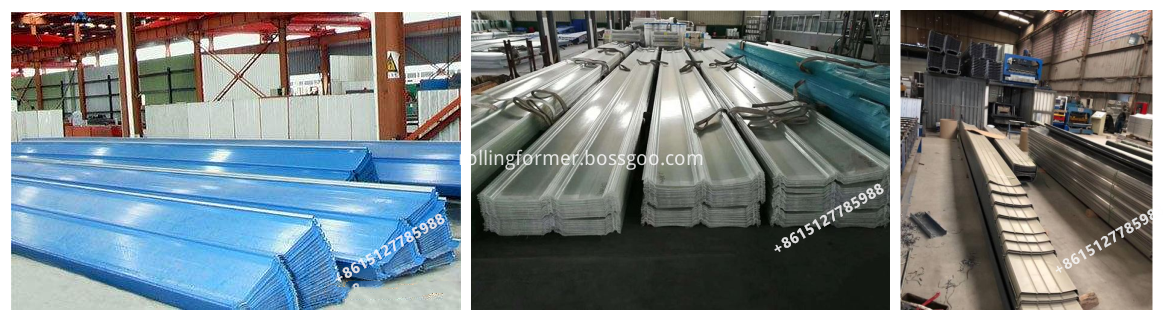

Advantage of stand seam roofing Water-proof !!!  strong yield strength !!!  Anti-heavy weather !!!

Environment situation is more and more severe recent years. Roofings face more challenge,such as it will leak in rainy days and be destroyed by strong wind.To solve these problems, stand seam roofingie is popular and welcomed by many customers.

1)machine structure:wall panel structure

2)Main power:8-9KW siemens motor

3)Forming stations:22

4) Way of drive:1.0"single row chain drive

5)Diameter of shaft:80mm

6)Max rolling speed: 12-15m/min

7)Thickness: 0.3-0.8mm galvanized steel or prepainted sheet,G550Mpa

8) Material  width:as request

9)Material of roller:polished and coated with chrome, surface with 0.05mm

10)Material of blade mould:Cr12, quenched 58-62℃

11)way of cutting:hydraulic mould cutting(stop to cut)

12)Length cutting tolerance:+/-1.0mm

13)Hydraulic pressure :16Mpa

14)Hydraulic power:5.5kw

15)Computer Control system:PLC  control from Taiwan

16)Omron encoder measure the length ,made in Japan

17) Electrical requirement:380V,50Hz,3Ph

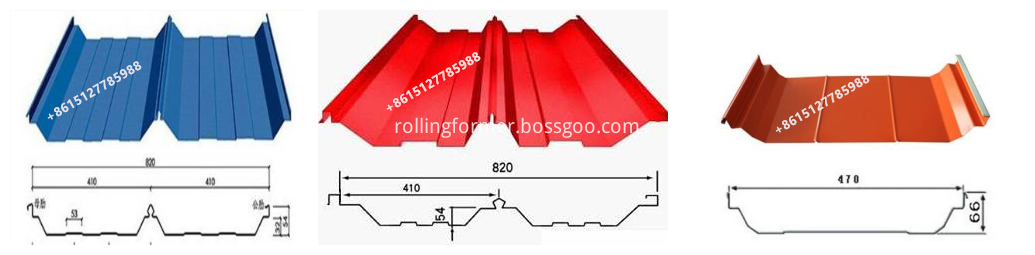

Profile Drawings of Stand Seam Roofing making Machine / SSR machinery

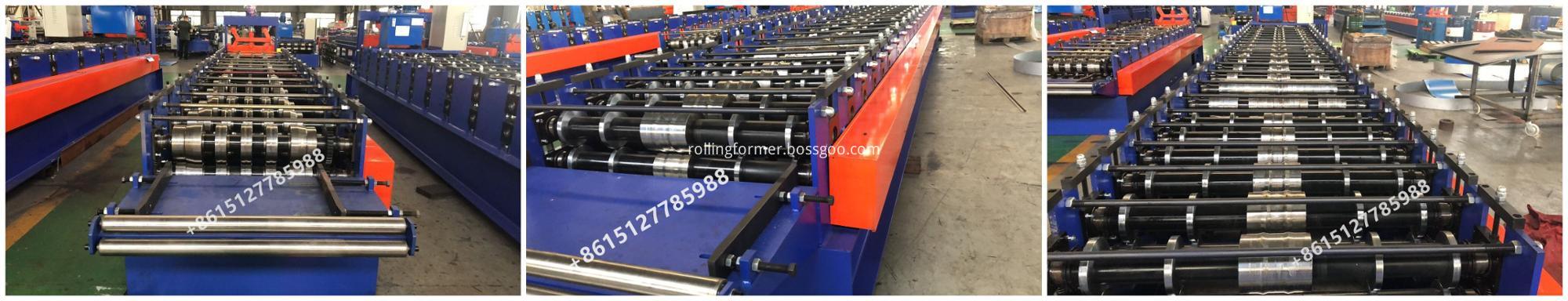

rollers of Stand Seam Roofing making Machine / SSR machinery

Compared with normal rollers, this new model roller quench twice times and prolong heat treatment time.More over, it is equited with 2-3mm chromed seamless spacers.



Hydraulic station of Stand Seam Roofing making Machine / SSR machinery

To improve stability and prolong life time, this machine adopts powerful 5.5 KW hydraulic station. it adopts national standrad motor.

Control system of Stand Seam Roofing making Machine / SSR machinery

we use advanced control cabinet . It adopts touch screen+ button+ PLC control system.

The advantage of new model cabinet: more thick steel plate + more buttons to control machine

Screen brand: Siemens       Button brand: Omron        PLC: Delta         Encoder: Siemens

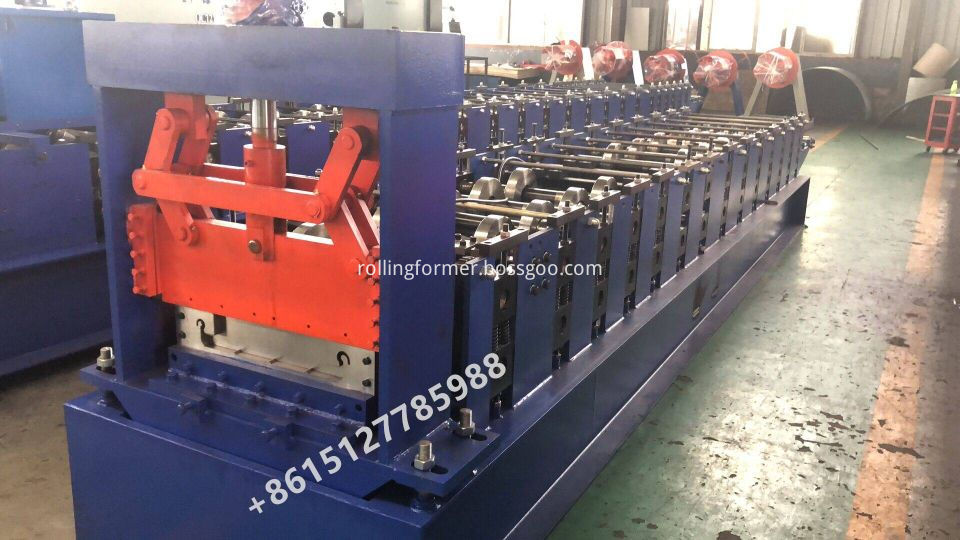

Stand Seam Roofing making Machine SSR machinery works in customer factory

its feeding part adopts support bench,which will ensure raw material to go inside more smoothly.Besides, the shearing blade is quenched. It is very easy to shear up to 1mm matel sheet.



 Installation of Stand Seam Roofing

we supply professional technology training for customer.Backed with 15 years enginner team, we can solve all problem before shipment.Besides, we offer videos and manual for installation
