Product Description
Panel Rollforming Lines Metal Rollforming Machines
Panel Rollforming Lines Metal Rollforming Machines can produce the metal roofing panels in large quantity, the speecapacity can be from 10-45 meters per minute. The Panel Rollforming Lines Metal Rollforming Machines can be designed as normal speed machine and high speed machine. Whole set Panel Rollforming Lines Metal Rollforming Machines is controlled by Panasonic PLC, it is CNC machine line from de-coiler, levelling, main roll forming, hydraulic cutting and receiving table.
This is the working flow of the Panel Rollforming Lines Metal Rollforming Machines .
De-coiler -- Feeding --- Roll forming ---- Cutting-conveyor-Electric horizontal discharge structure –package
Main Description Specification:
Machine model Yx16x76,2x762mm and any profile can be designed according to customer's requirements.
Feeding width 925mm /1000/1220/1250
Machine speed 30-35m/min(including cutting time)
Sheet thickness 0,3--0,8mm,
Material hardness G550
Controlling Panasonic PLC
7 ton hydraulic de-coiler One set , or manual decoiler,
Roll station 20 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62 °C, surface chrome treatment
Main machine specifications of the high speed steel roofing rollformers:
Machine model Yx16x76,2x762mm
Feeding width 925mm
Machine speed 30-35m/min(including cutting time)
Sheet thickness 0,3--0,6mm,
Material hardness G550
Controlling Panasonic PLC
7 ton hydraulic de-coiler One set
Roll station 20 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62 °C, surface chrome treatment
Shaft material and size 45# steel,diameter is￠65mm
Main power 5,5kw (servo power, Brand: An chuan)
Cutting method Post cutting system
Hydraulic press 12Mpa
Cutting blade material Cr12Mov, quenching HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 415V, 50HZ,3Ph
transmission 1,2 inch chain
The structural Middle plate
Machine color Blue
Machine size Length*width*height 11m*1.8m*1.0m
The main features of each component:

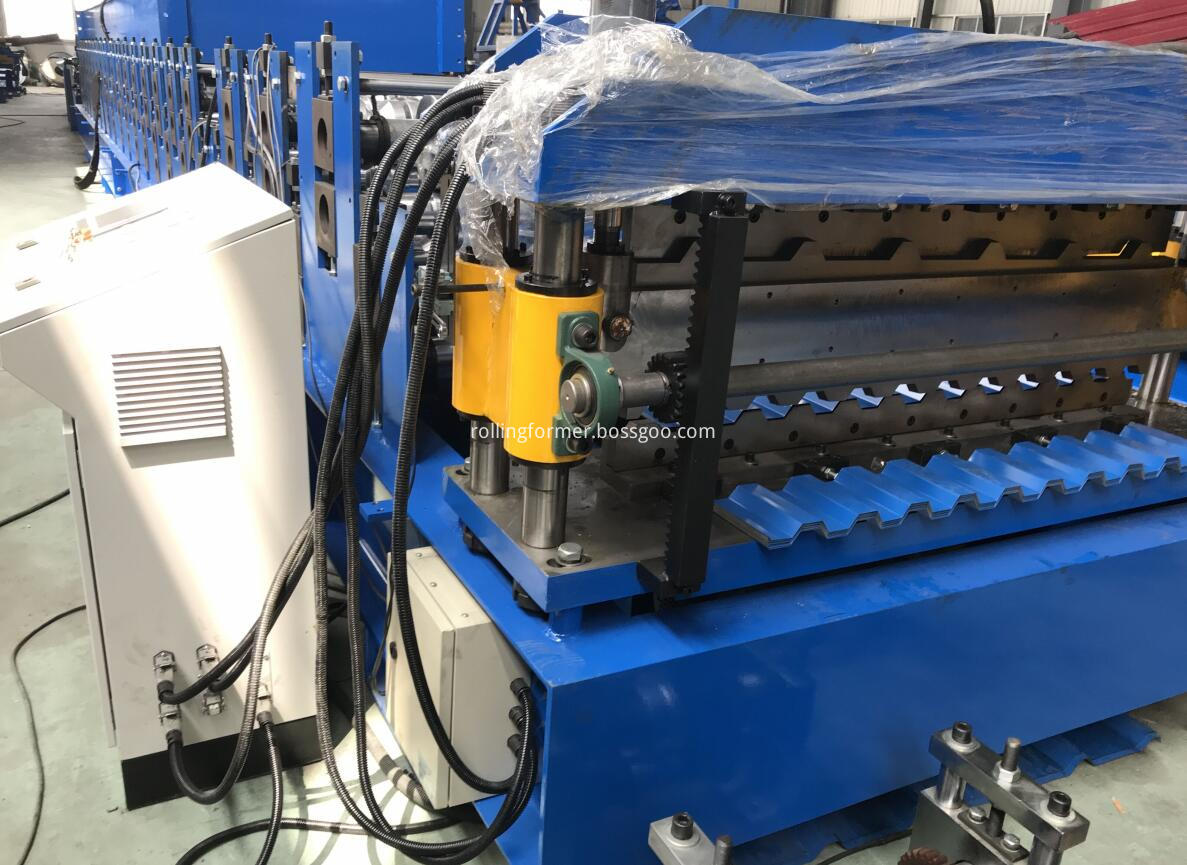

Cutting device:
(1) Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2) The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃
(3) Cutting length monitoring:Automatic length cutting
(4) Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1) Voltage:380V,50HZ,3ph
(2) Automatic control length cutting
(3) Automatically count production
(4) The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5) Accurately modify the length tolearance
(6) Control method: touch screen and button coexist

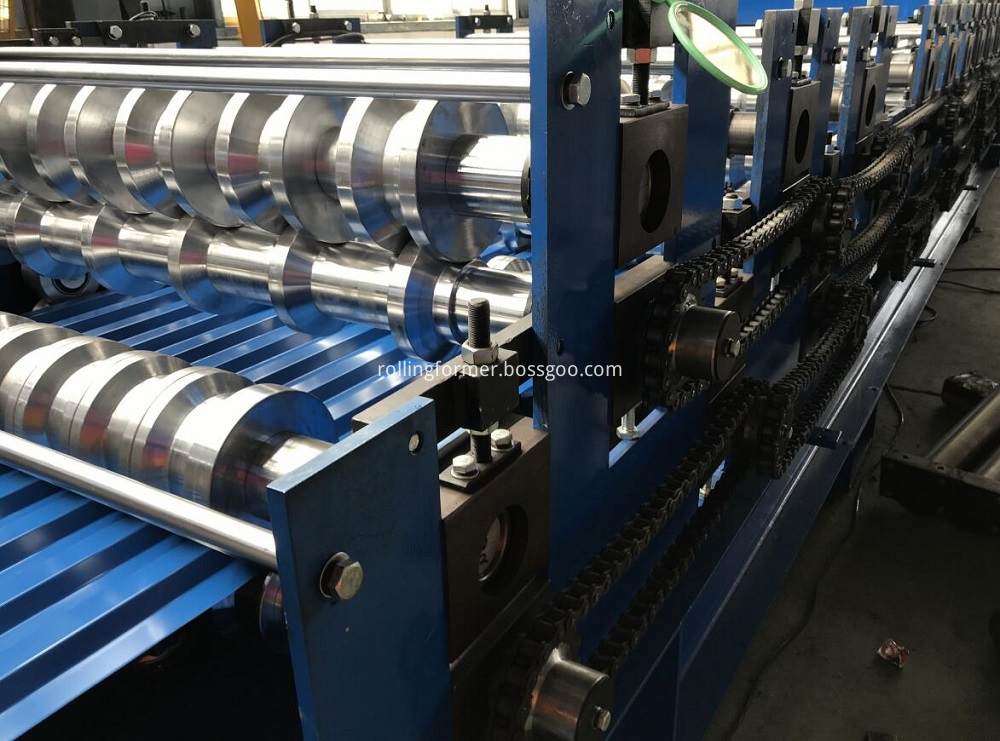

Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.
(2) Other important components of the equipment and components are used in well-known domestic enterprises, which effectively guarantee the performance of the equipment.
(3) It adopts fully automatic fixed length forming punching and cutting, precise positioning and positioning, and the shape of the head and tail is beautiful and tidy without deformation.
(4) The equipment is easy to install and debug, suitable for factory production.
(5) The equipment is low in noise and high in work efficiency.
Our factory is professional make the rollformer machines for the steel roofing, CZ purlines, steel framing strut, suspended ceiling channel, cable tray roll forming machine, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on. If you need any machine , pelase feel free contact me, please!
we can design the machines according to your requirements!
