Steel framing steel door frame rollforming line
Steel framing steel door frame rollforming line is special be designed to roll forming the steel framing door frames for the door system. Steel framing steel door frame rollforming line is full automatic controling line from the material strips feeding to levelling system, punching, rollformer, GCe 12 blade cutting and receiving table. One Steel framing steel door frame rollforming line can produce two sizes of the door frame by adjusting the rollers. Theare are manual adjusting method and automatic adjusting method to adjust the bottom width of forming a door frame. For the punching system, there are 4 or 5 stations to form all the holes,the connecting holes or the locker holes.
First, the function of the Steel framing steel door frame rollforming line: Mainly used for the full molding and semi-molding of the door frame material, suitable for security doors, fire doors, stainless steel doors, movable doors. Second, the speedframe door frame rollforming line specifications Model: Single lace molding machine (formed only with curved lace parts, other right angles are completed on the bending machine), bottom frame forming machine, frame forming machine (separate frame and hinge frame, top frame) Composite door frame forming machine, composite door bottom frame forming machine. Customers can provide cross-section drawings or sample customization, and our company can also provide cross-sectional reference. Third, the door frame molding machine performance structure: There are semi-automatic control and fully automatic computer touch screen configuration (discharge rack - feeding open - host molding - straightening part - hydraulic cut) adjustable speed, adjustable length, Counting, you can enter 3-6 specifications and quantity at the same time. The thickness of the molding material is 8-15 meters per minute: 0.3mm-2.0mm.

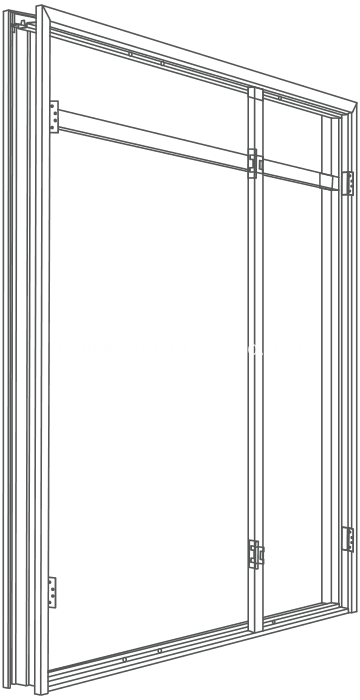

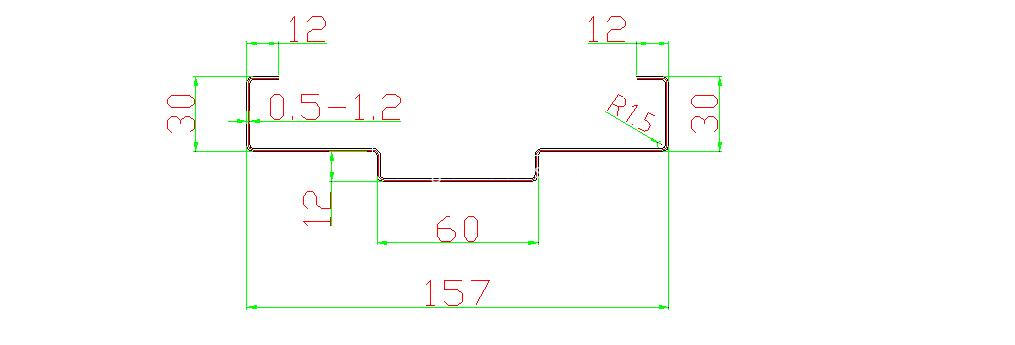

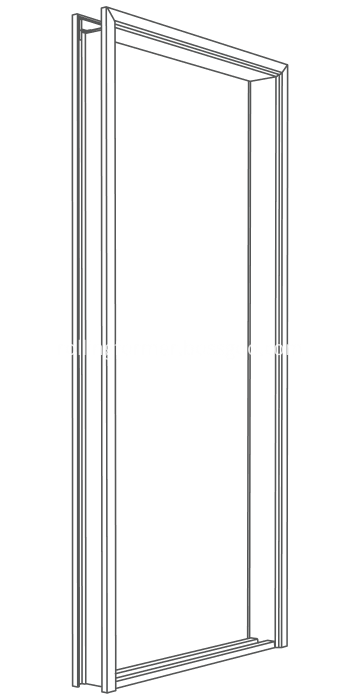

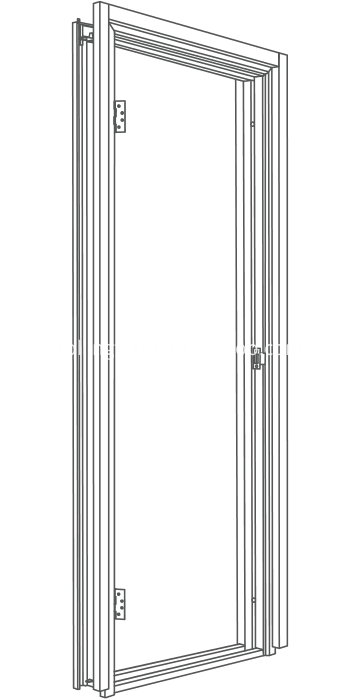

Below are some drawing of the steel framing door frame for your reference:

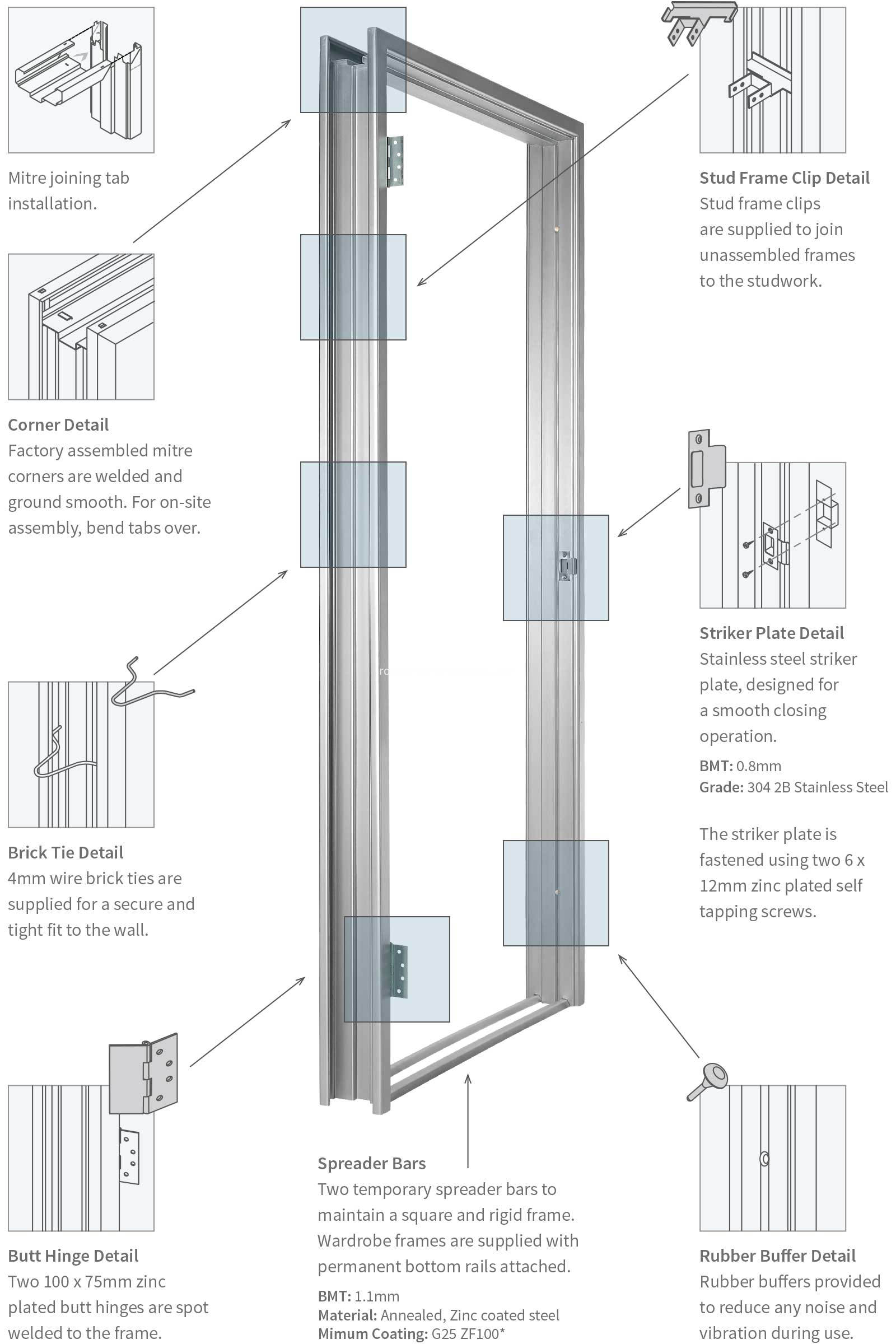

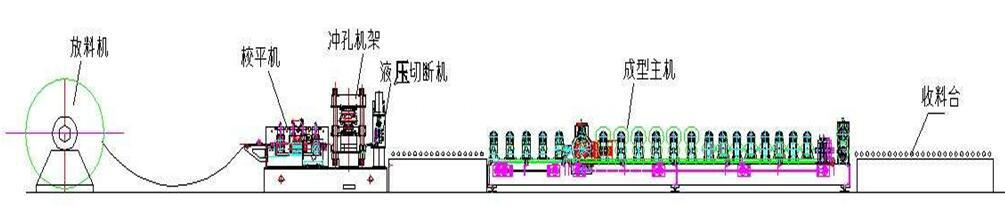

The Steel framing steel door frame rollforming line consists of the following parts, unwinding, punching, leveling, roll forming, and shearing. This is a flow chart of a conventional door frame forming machine. Since the punching portion needs to punch out a large connecting hole, if it is a front punching hole and a rear cutting method, it is easy to jam, causing problems in the operation of the door frame forming machine. If it is the front punching, the front cutting, the forming of a section, thus avoiding the problem of the jam.

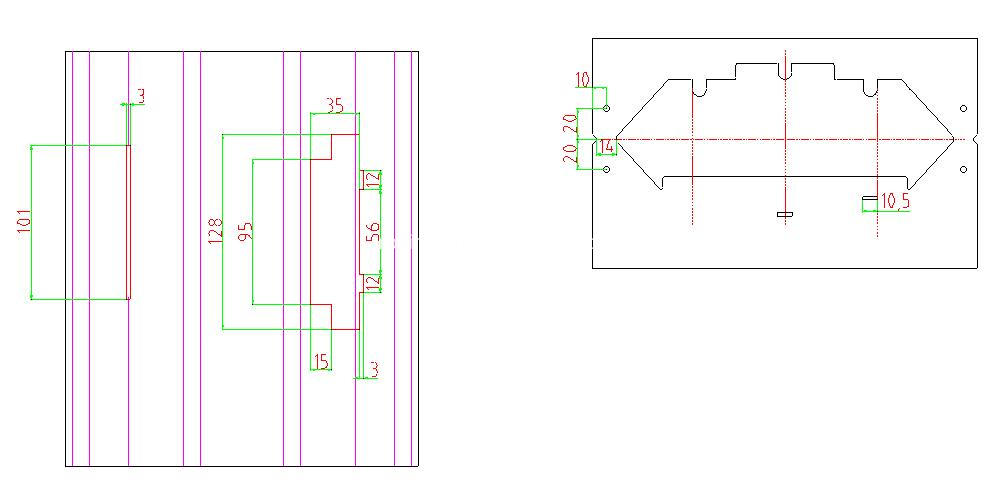

This is the holes punching and cutting system of the Steel framing steel door frame rollforming line.

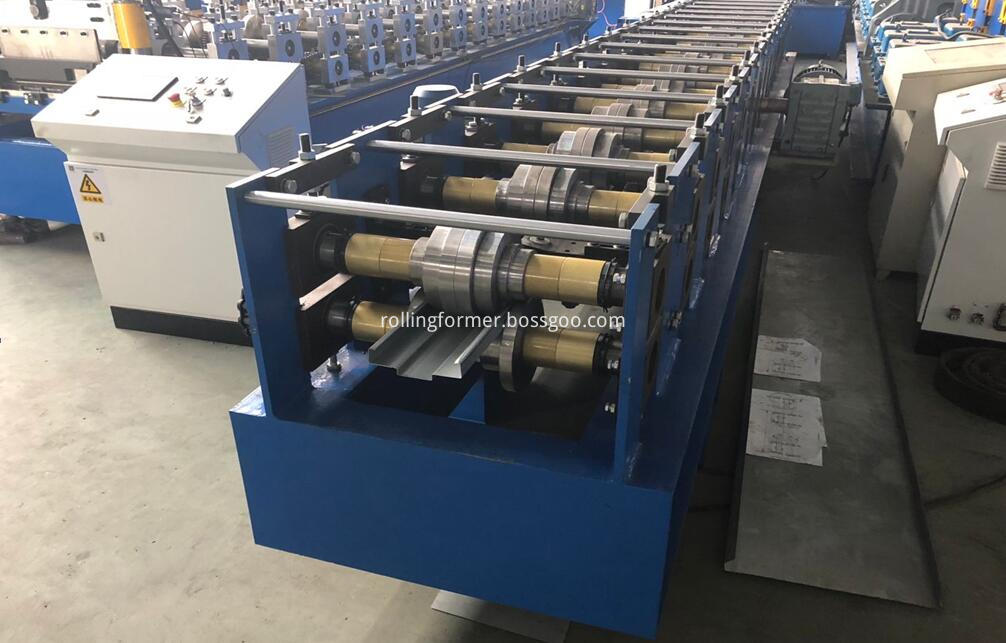

This is the main machine body of the Steel framing steel door frame rollforming line. specifications are as below:
Equipment type Yx12x30x157mm
Expanded width 245mm`
Working speed 10-15 m / min (excluding cutting time)
Pressed sheet thickness 0,8--1,5mm
Control method Panasonic PLC
Dispensing rack 2 tons of manual discharge rack
Leveling machine
Leveling machine power 3kw
Word service feeder
Word service feeder power 2,2kw
Punching frame A set of [4 sets of punching structure]
Mold 4 sets
Number of molding channels 16
Roll material Gcr15 steel after finishing, quenching HRC58-62 ° C, surface chrome treatment
Shaft material and shaft diameter 45# steel finishing, shaft diameter ¢65mm
Host power 7,5kw
