Smooth Curver Straight panel and Taper panel

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Set/Sets
Delivery Time:	45 Days

Contact Now

Basic Info

Model No.: AP-CURVER

Tile Type: Colored Steel

Certification: SGS, CE

Condition: New

Customized: Customized

Usage: Roof

Transmission Method: Machinery

Additional Info

Packaging: Plastic film packaged and then loaded into container

Productivity: 10-15 piecec per minute

Brand: AP

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets / year

Certificate: SGS,CE

HS Code: 8455221000

Port: Shanghai Port,Zhangjiagang Port,Tianjin Port

Product Description

Smooth Curver Straight panel and Taper panel

Smooth Curver Straight panel and Taper panel can curved the standing seam panel at any radius and shapes, the normal shape is M shape and S shape N shape. With Curved standing seam panel, you can build your simple house easily.

Can curve positive arch and negative arch profile .Minimum curved radius for aluminum thickness 0.9mm roofing: convex curved 4 meters, concave curved 6.5 meters.Minimum curved radius for aluminum thickness 1.0mm roofing: convex curved 2.5meters, concave curved 6 meters.Minimum curved radius for steel thickness 0.6mm roofing: convex curved 9 meters .At the same time, the machine can curve 20 units arch with different radius.

Straight panel Tapet panel standing seam panel rollformer 1

Curve machine specification: Gear driving,Rollers manufactured from high quality 45﹟ steel, CNC lathes, hard Chrome Coated,Shafts Diameter: ф75mm, Precision Machined,Main motor: 4 KW, ,Server motor (Schneider Electric brand): 2KW,
Forming speed: Approx. 15m/min,The PLC Control System:Combined with: PLC (Taiwan Delta/German Schneider Electric), Inverter (Taiwan Delta/ German Schneider Electric),Touch Screen (Taiwan WEINVIEW/ German Schneider Electric), Encoder (Japan Omron/KOYO), etc

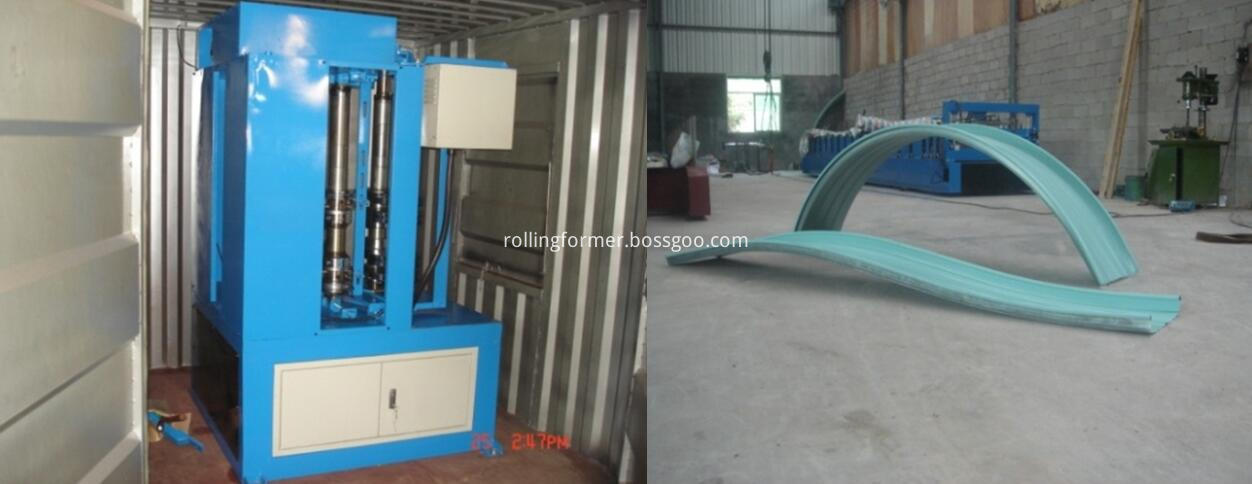

standing seam smooth curver

Smooth Curver Straight Panel Smooth Curver Taper Panel Panel Smooth Curver
