Product Description

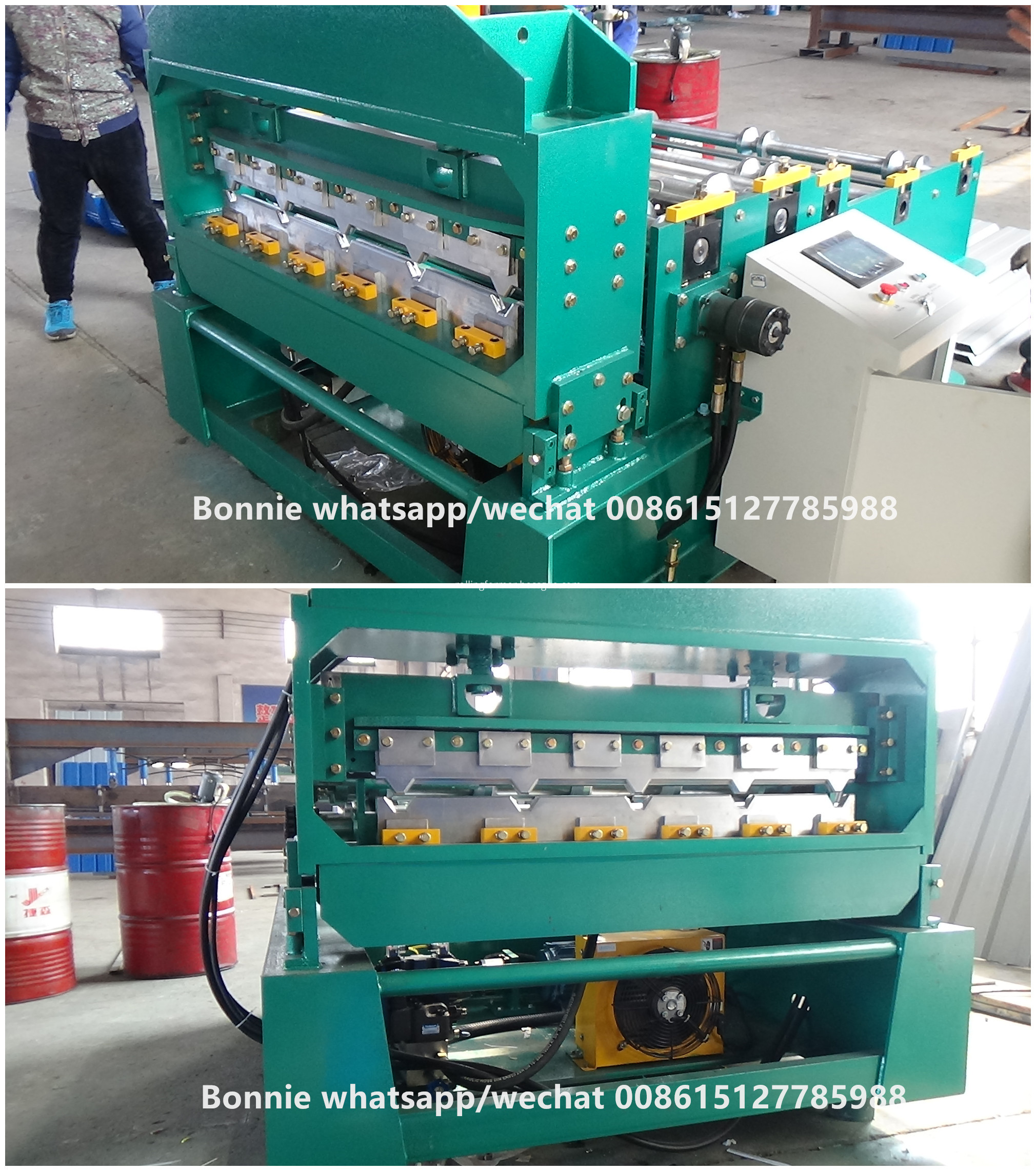

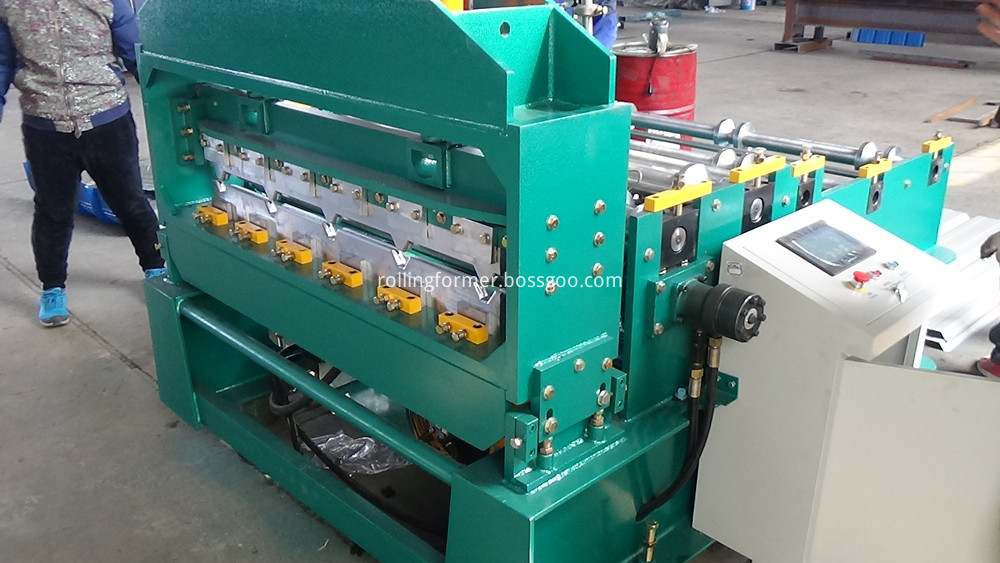

Metal Roof Sheet Crimping Curving Roll Forming Making Machine
General Parameter
Thickness: 0.35-0.8mm
Feeding table with guide rollers , Auto feeding,equipped with encoder
Frequency speed control: Motor 5.5KW
Control the spacing of tooth crimp automatically
Curved Radius:min 2000mm
The min distance between the last crimp and the end of the sheet:350mm
This machine can work in two directions, horizontal or vertical
PLC control system:
PLC brand: Siemens
Touch screen: Siemens
Inverter: Schneider
|
|
new design
|
old design
|
|
hydraulic oil pump
|
with screws bolts fixed oil pump
|
none
|
|

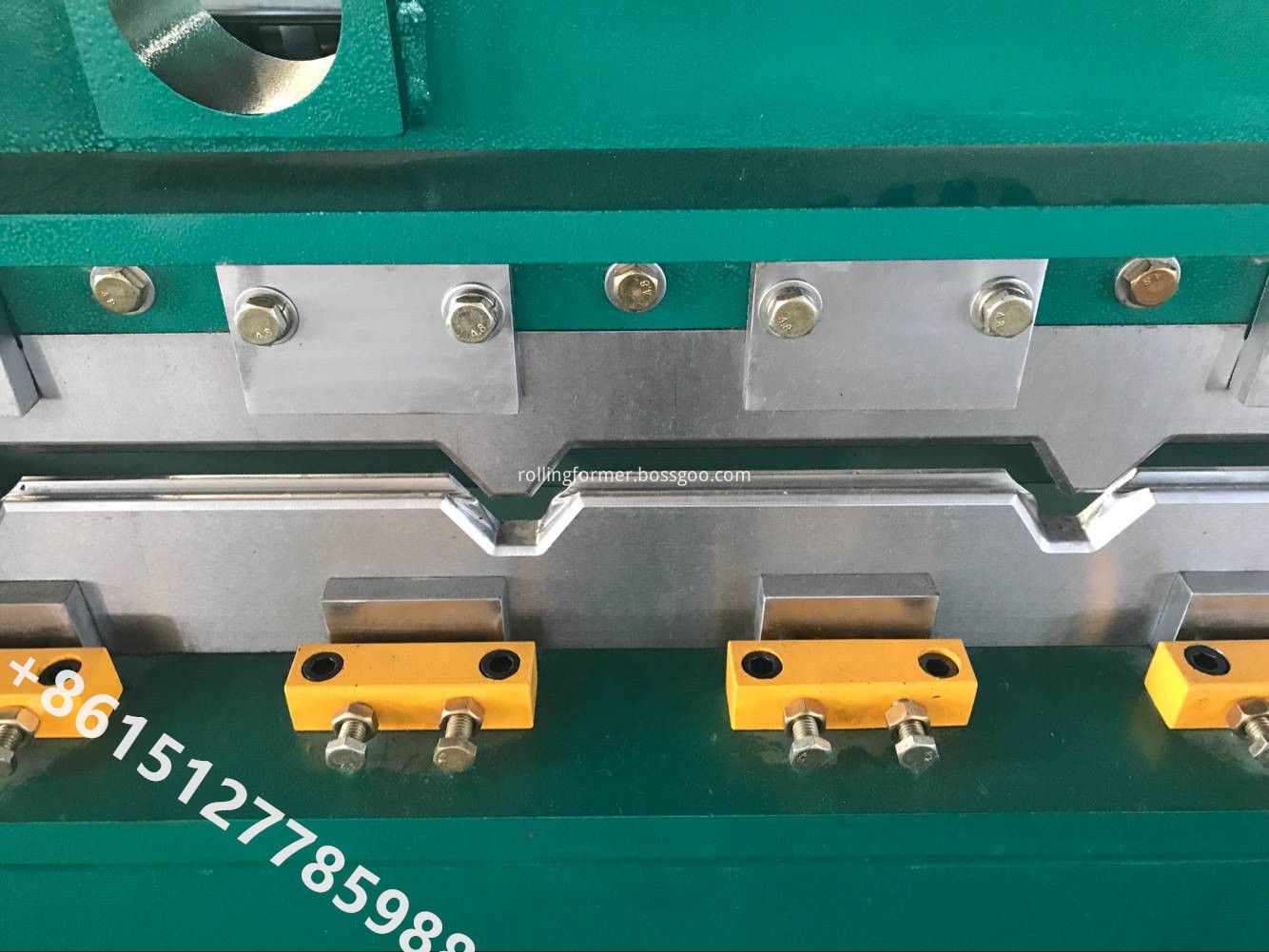

curving mould
|
with screws and more thick mould
|
none
|
|
mould moving method
|
with trail(can be firmed by screws)
|
by column (can not be fixed)
|
Hydraulic station of metal roof sheet crimping curving roll forming machine
To improve stability and prolong life time, this machine adopts powerful 5.5 KW hydraulic station.
it adopts national standard motor.

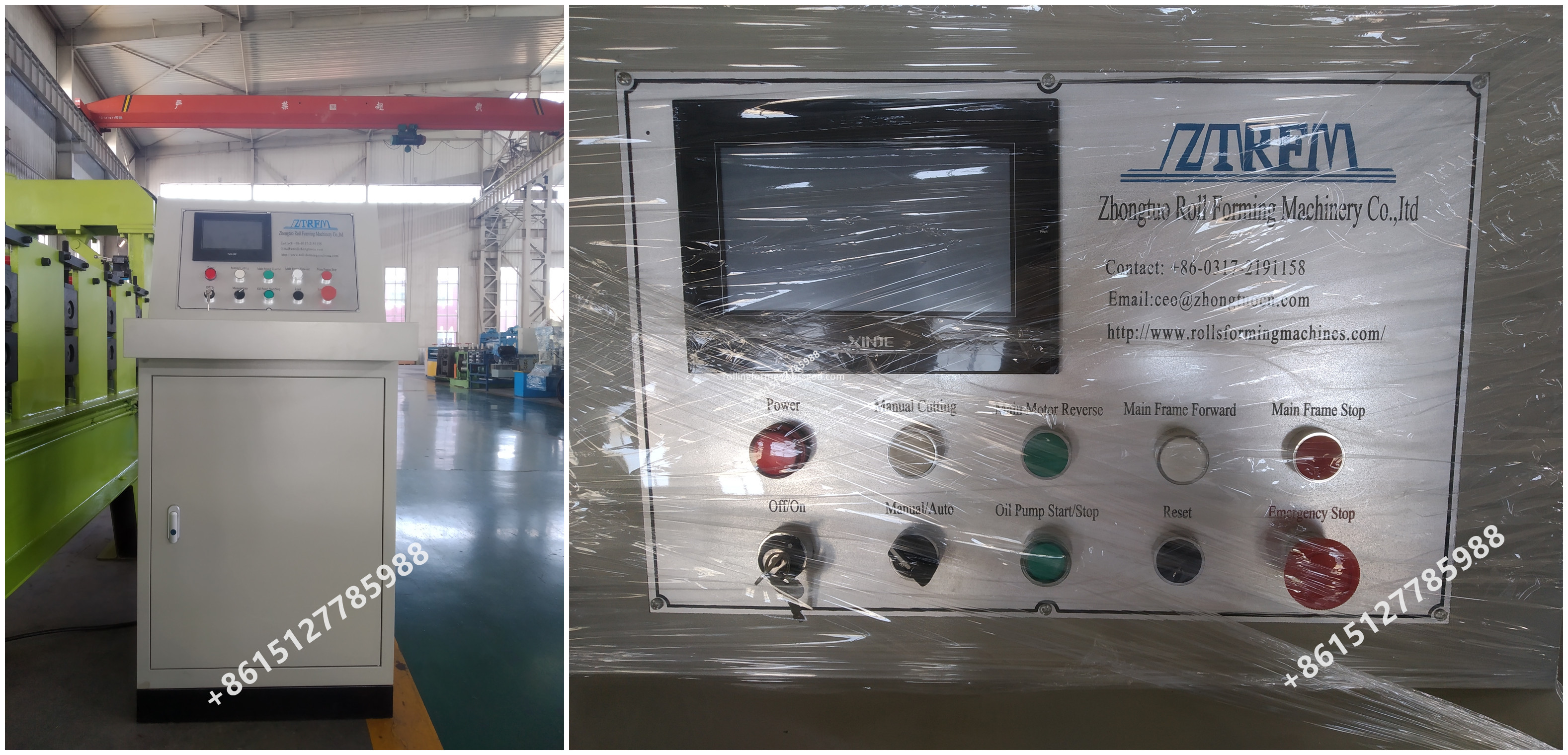

Control system of metal roof sheet crimping curving roll forming machine
we use advanced control cabinet . It adopts touch screen+ button+ PLC control system.
The advantage of new model cabinet: more thick steel plate + more buttons to control machine

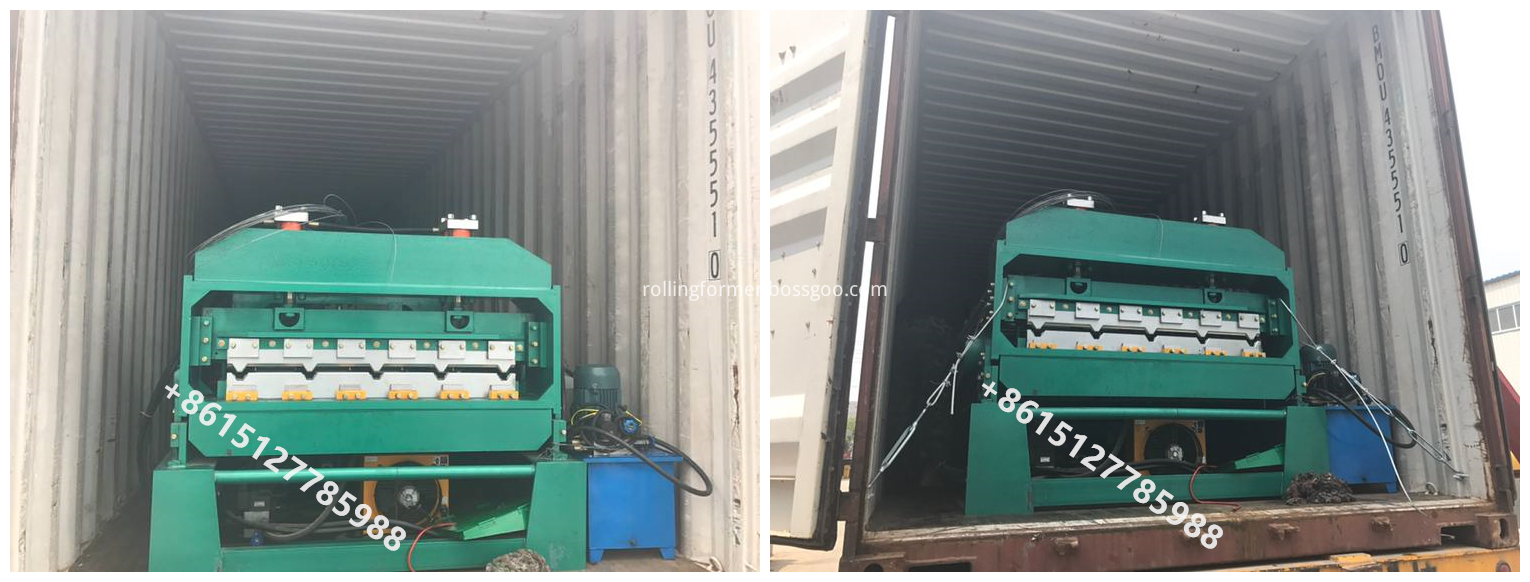

metal roof sheet crimping curving roll forming machine is ready for delivery
