Basic Info

Model No.: AP-100-300-Purlin framing machine

Warranty: 2 Years

Certification: CE

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Semi-Automatic

C Section Floor Beam Machine Voltage: 380-415 V

C Section Floor Beam Machine Controling: PLC

C Section Floor Beam Machine Color: Blue Or Can Be Painted As Your Required Color

C Section Floor Beam Machine Shaft Material: Cr12

C Section Floor Beam Machine Transmission: Double Chain With 1.2 Inch

C Section Floor Beam Machine Shaft Diameter: 80mm

C Section Floor Beam Machine Roller Station: 12 Stations

C Section Floor Beam Machine Main Motor Power: 15 KW

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Additional Info

Packaging: plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Automatic changing size CU 100-300 purlin steel framing machine

Automatic changing size CU 100-300 purlin steel framing machine Features is as below:

From size 70-300mm, it is automatic move the left sides rollers to have the C purlin width, no need to change the rollers, and spacers. So it save much time and human lobor. This Automatic changing size CU100-300 purlin steel framing machine can produce both C purlin and U purlin.

70-250 PGU PGC steel framing machine is automatic adjusting, no need change the size by changing the mold.
It can produce the size from 70-250, thickness is from 0.9-2.5mm.
Width adjustment by left sides rollers totally moving, no need change or adjusting the rollers

Automatic changing size CU100-300 purlin steel framing machine including below parts:

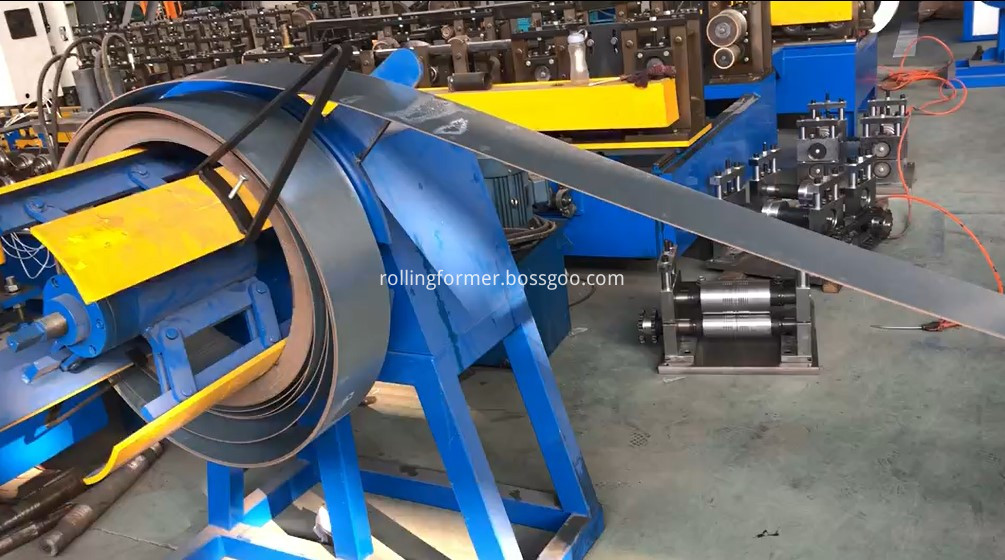

3 tons Manual de-oiler 1 set
Material Leveling system 1 set
Main Roll Forming Machine 1set

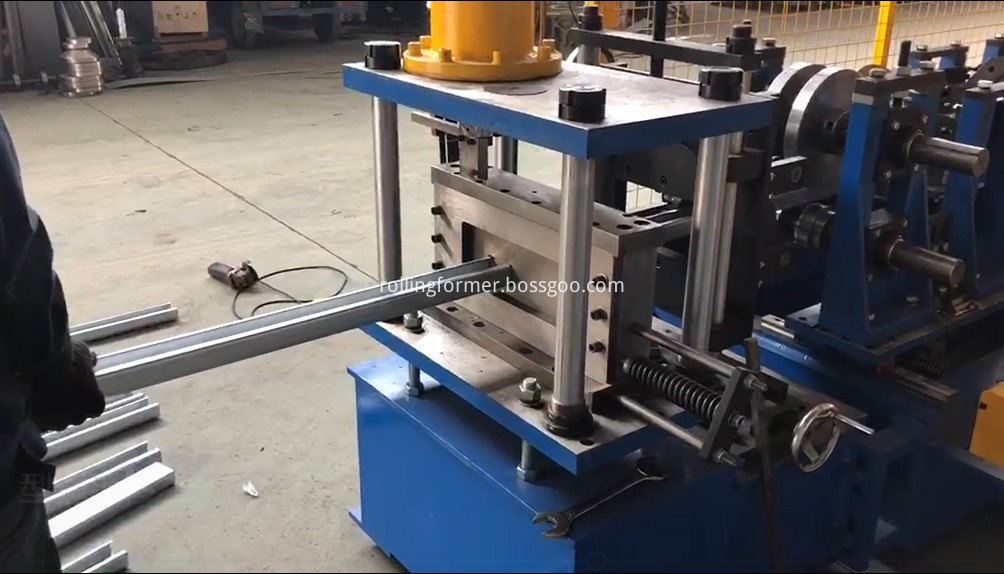

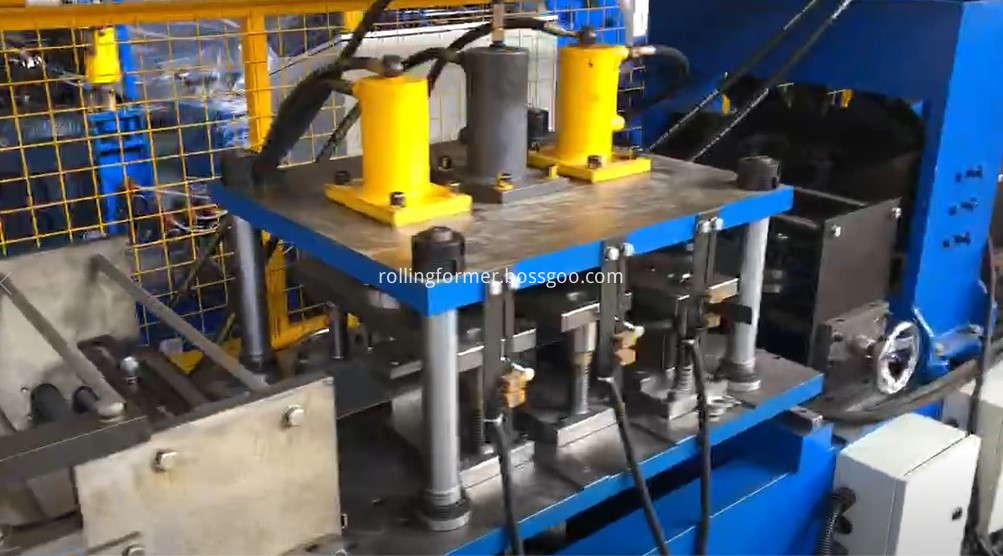

Hydraulic Cutting system 1set
Control Cabinet 1set
Hydraulic station 1set
Receiving table 2sets

Automatic changing size CU 100-300 purlin steel framing machine main specification:

Machine Model Yx15x35-40x70-250mm
Feeding width C:65-345mm
U:32-312mm
Working speed 10-15 meters/min
Strips thickness 0,9--2,5mm
Control system Matsushita PLC
De-coiler 3 tons manual decoiler
Feeding rollers 2 rows
Leveling rollers 5 rows
Forming rollers 16 rows station
Roller material Gcr15 Steel finishing after quenching HRC58-62℃,
Chrome plating
Shaft material
Shaft diameter 45# steel￠70mm
Main power 15kw
Hydraulic station power 5,5kw
Hydraulic press 12Mpa
Cutting blade material Cr12Mov, Quenching HRC 58-62℃
Length Tolearance 3m±1.5mm
Voltage 380V, 50HZ,3 phrase
Can be custom made accordingly.
Transmission 1,0 inch, double chain
Machine structural Arch structure
Equipment Color Blue or be custom made
Machine size L*W*H  (5mx1,6mx1.0m)

If you want to know more about this automatic adjusting 70-300 PGU,PGC purlin roll forming machine, i would like to send the details specifications and videos to you.

kindly contact me and send me an inquiry now!
